High Resolution

Our low-level UAVs deliver haze-free imagery at very high spatial resolution (3cm/pixel), and can be deployed rapidly and repeatedly.

Accuracy

We use 1-2 centimetre survey equipment to georeference the imagery, providing you with relevant and powerful location information.

CASA certified

Hicam is fully insured, and operates in accordance with its Operator’s Certificate and CASA-approved Operations Manual.

Introduction

Hicam was founded in 1996, and provides ultra-sharp aerial imaging for Australian industries and government. We fill the gap left by blurry, out-of-date satellite imagery, and costly aircraft surveys with long booking times. By operating Unmanned Aerial Vehicles below 400 feet, we out-perform traditional methods in both resolution and lack of haze.

The UAV-based approach also allows 3-dimensional data to be collected from the low-altitude images using specialised software. To achieve accurate geo-referencing of the products in 3 dimensions, markers are distributed over the survey area and measured with RTK GPS equipment.

In most surveys, we use check points and statistical methods to validate the accuracy of the data, and include this information in comprehensive metadata documents that we supply as PDFs.

controller_450_wide

A Clear View

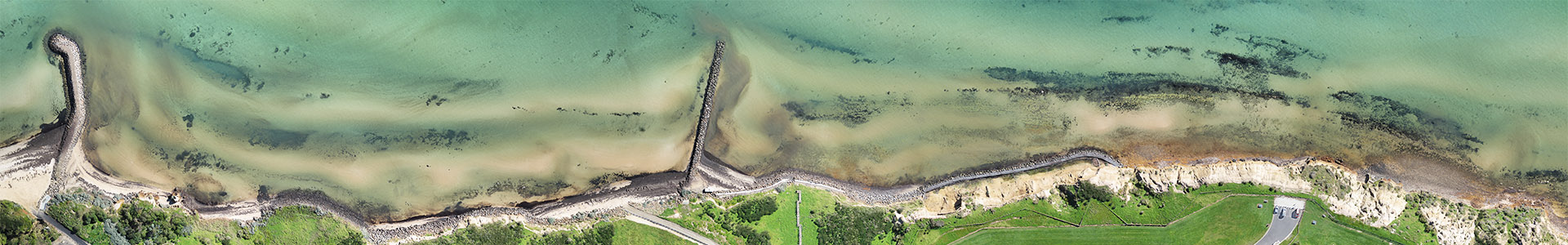

The images below are from a 280 Megapixel orthophoto covering approximately one kilometre of coastline, from a demonstation survey in 2014. The lower image shows the level of detail achieved with 3 centimetres per pixel. It is quite remarkable when one considers that this level of detail exists across the entire surveyed area.
Because the imagery is geo-referenced, coordinates of objects can be displayed, and distances measured. Many software packages allow this. Typically we also provide a 3-dimensional Digital Surface Model and full-colour Point Cloud. These products are also geo-referenced, and we can help you select software for viewing and measuring the data.

groyne_940wide

groyne_close_940wide

Professional Standards and Safety


  • Hicam’s Operations Manual is approved by CASA, and guides all procedures, including logging of flights, defects and maintenance, and risk assessments to determine if a flight may go ahead.
  • Hicam maintains internal guidelines such as allowable wind strength, and abides by CASA regulations including maximum height and avoidance of populous areas.
  • Every Hicam UAV is operated by a UAV Controller who has passed CASA-approved theory examinations and has completed CASA-approved training for the applicable UAV.
  • At all stages of flight, a Hicam UAV is under the operator’s complete control, and will follow the commanded flight path with great precision. Failsafe features include automatically returning to the takeoff point on low battery, high wind, or exceeding safety distance.
